22.8V 30000mAh Pouch Cell High Voltage Battery Pack Herewin 6S1P

Ask Lasest Price
Brand Name :	Herewin
Model Number :	6S1P 30000mAh
Certification :	MSDS UN38.3 BIS
Price :	154-167USD/pcs
Payment Terms :	T/T
Supply Ability :	30000pcs/month
Delivery Time :	3-5days for samples/a month for massive

Add to Cart

Product Details
Company Profile

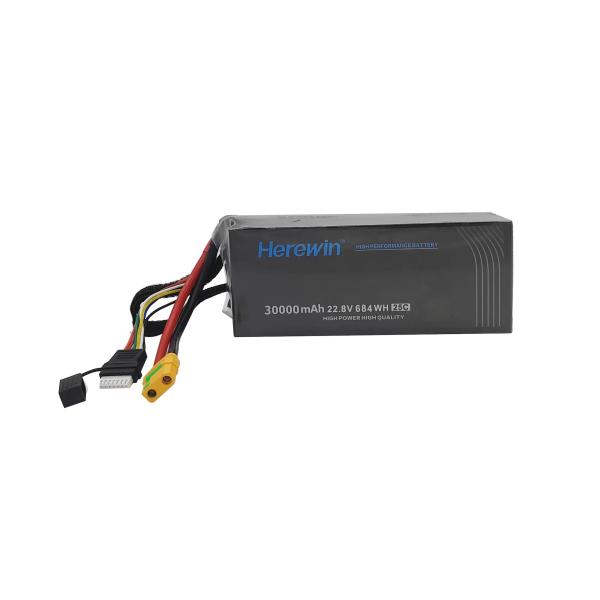

22.8V 30000mAh Pouch Cell High Voltage Battery Pack Herewin 6S1P

Herewin 6S1P 22.8V 30000mAh Pouch Cell High Voltage Battery Pack

Product Description: 30000mAh 6S 25C 22.8V LiHv Soft Battery Pack

The Herewin 30000mAh 6S 25C 22.8V LiHv soft battery pack is a high-performance power solution that raises the bar for UAV applications. This battery pack is engineered to provide a stable 22.8V output and a 25C continuous discharge rate, ensuring that your UAV has the power it needs to perform under demanding conditions. The 30000mAh capacity is designed for UAVs that require extended flight times, making it ideal for missions that demand endurance and high energy output. The soft pack design offers flexibility and durability, accommodating various drone platforms with ease. With its lightweight and compact form factor, this LiHv battery pack is optimized for drone performance, delivering the power you need without adding unnecessary weight.

The 25C continuous discharge rate of this battery pack is engineered to handle high current draw, delivering consistent power even when the UAV is performing at its peak. The soft pack design not only offers flexibility to fit various drone platforms but also adds a layer of durability to withstand the challenges of field operations.

Specification Sheet

Item	Data
Nominal Voltage (V)	22.8
Capacity (mAh)	30000
WH	684
Max. Discharge Current	25C
Max. Charge Current	3-4C
Connector Type	XT90-S (optional)
Dimensions (mm)	77107227
Net Weight (kg)	3.5
Life Cycle	≥750

22.8V 30000mAh Pouch Cell High Voltage Battery Pack Herewin 6S1P

Key Features:

High energy density LiHv technology
Exceptional 30000mAh capacity
Reliable 6S configuration
Powerful 25C continuous discharge rate
Flexible and durable soft pack design
Lightweight and compact

Application Field:

The 30000mAh 6S 25C 22.8V LiHv soft battery pack is ideally suited for a wide range of medium to large-sized unmanned aerial vehicles (UAVs) that require extended flight times and high performance. Its exceptional capacity and powerful discharge rate make it an excellent choice for demanding applications.

Potential applications include:

Aerial photography and videography: For capturing high-quality aerial footage for extended periods.
Agricultural drones: For precision agriculture tasks such as crop spraying, monitoring, and data collection.
Delivery drones: For transporting goods and packages over longer distances.
Inspection and surveillance: For detailed inspections of infrastructure, search and rescue operations, and security monitoring.
Mapping and surveying: For creating accurate maps and 3D models of large areas.
Film and television production: For aerial cinematography and special effects.
Public safety and emergency services: For search and rescue, disaster relief, and firefighting operations.

At Jarwin

We offer a diverse range of product lines, including various specifications of battery cell products, UAV batteries, smart UAV batteries, battery chargers, portable power station, home energy storage systems, industrial and commercial battery energy storage systems, UBS signal base stations batteries, EV power batteries, and electric bicycle batteries.

With our own battery cell and battery Pack factory, we providing extensive and highly flexible support for the manufacturing of various battery samples, product customization, product solutions, and OEM/ODM services. looking forward to cooperating with you!
